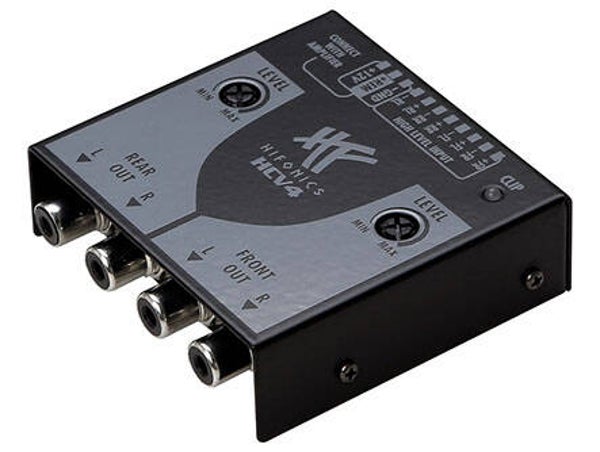

HCV4

4-Channel Converter High Level to Low Level

Operating voltage 10 - 16V

Signal to Noise Ratio > 95 dB

Slew Rate 9V/µS

Channel Separation 80dB

Transmission frequency 5 Hz - 60 KHz (+/-1 dB)

Idle current < 10 mA @ 14,4 V

RCA ouputs (unbalanced) 2,36 Vrms

Auto Turn-On

Dimensions 62 x 70 x 21mm
