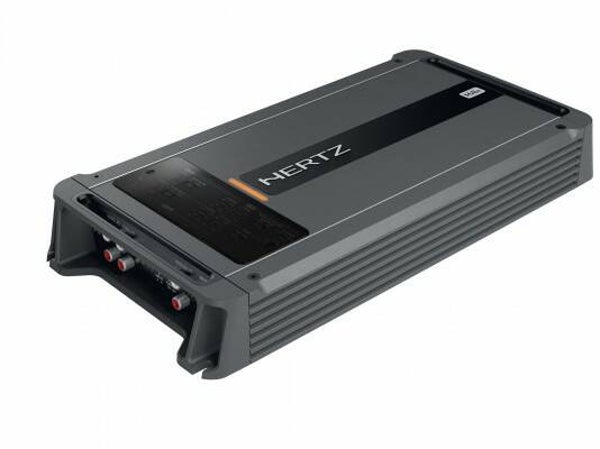

Hertz Mille Power D-CLASS 5 CH. AMPLIFIER 4x100W+1x550W (Stuks)

Hertz ML power 5 compacte en krachtige high-end 5-kanaals versterker uit de Hertz Mille lijn.

Hertz ML power 5

Hertz mille 5-kanaals versterker.

De top-lijn van Hertz voor high-end audio

Hertz ML Power 5 vermogen in watt RMS:

70 W x 4 + 380 W x 1 op 4 ohm

100 W x 4 + 550 W x 1 op 2 ohm

200 W x 2 + 380 W x 1 op 4 ohm

200 W x 2 op 4 ohm + 550 W x 1 op 2ohm

Andere specs van de Hertz ML power 5:

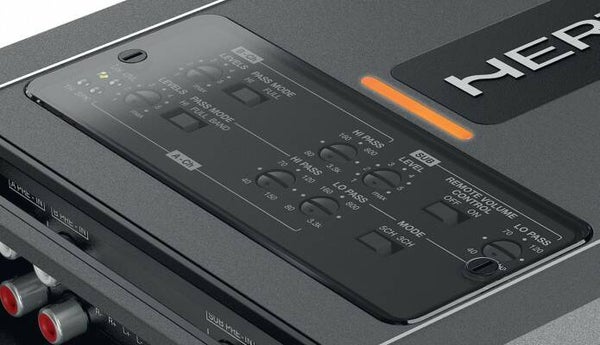

A Ch filters: Full / Hi-Pass / Band-Pass 40 ÷ 150 Hz (HI) 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.

B Ch filters: Full / Hi-Pass 80 ÷ 3.3k Hz @ 12 dB/Oct.

C Ch filters: Lo-Pass 50 ÷ 500 Hz @ 24 dB/Oct. +

Remote SUB volume: (-50 ÷ 6) dB

Distorsion - THD (100 Hz @ 4Ω): 0.08 %

Bandwidth A & B Ch (-3 dB): 5 ÷ 50k Hz

Bandwidth C Ch (-3 dB): 5 ÷ 500 Hz

S/N Ratio A & B Ch (A weighted @ 1 V): 100 dB

S/N Ratio C Ch (A weighted @ 1 V): 106 dB

Damping factor A & B Ch (100 Hz @ 4Ω): 50

Damping factor C Ch (100 Hz @ 4Ω): 90

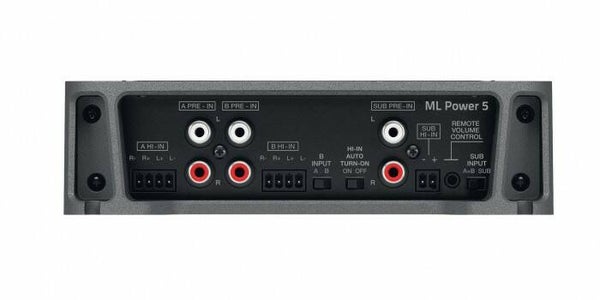

Pre-In sensitivity: 0.2 ÷ 5 V RMS

Pre-In impedance: 15 kΩ

Speaker-In sensitivity: 0.8 ÷ 20 V RMS

Speaker-In impedance: 470 Ω Load
